3/4"-16 Heim Joints Rod End Kit Left and Right Hand Thread Heim Joint Economy with Jam Nuts,750”Chromoly Joints Panhard Rod End Kit (3/4"-16-1set)

YIFUOK 3/4”Rod End Heim Joint Kit Left and Right hand thread3/4”Heim Joint Rod end kit complete with 3/4"-16 heat treated heim joint, jam nuts, weld in bungs.Our heim joints are made from C1045 Chromoly steel, The extreme load rating and size make these excellent for building custom steering and suspension links for trucks, 4x4s, rock crawlers, Jeeps, sand rails and more.Rod End：Thread Size:3/4"-16Ball Bore: 0.750" ；Ball Width: 0.875"Centerline Length: 2.875"Thread Length: 1.750"Load rating capacity: 28,081 lbs3/4 Bung：Thread Size: 3/4"-16Fits Tube Size: 1 1/4" OD.x .120" Wall x 1.01"ID.Jam Nut：Thread:3/4"-16Width: 1.125"；Height: 0.446"Carbon Steel, Silver Zinc Plated

• 【3/4"-16 heim joints Kit】1 right hand thread and 1 Left hand thread Heim set with Lock Nut Bushing Assembly,Easily transform suspensions with ease using the heim joint rod end kit, designed for easy installation through welding and additional hardware, ensuring a seamless and effective mating process.

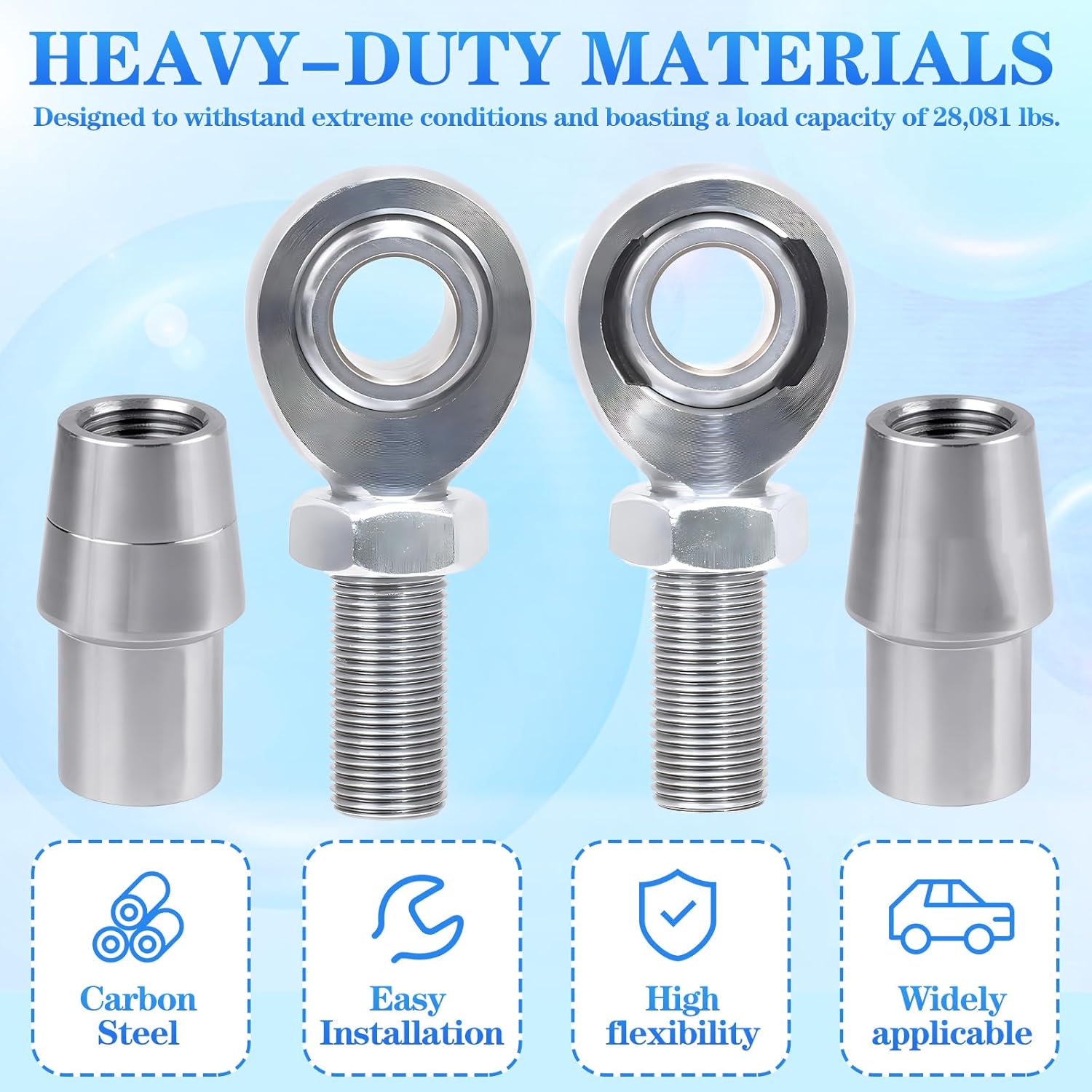

• 【Heavy-Duty Materials】The heim joints rod end kit is heat-treated C1045 steel, silver-zinc plated; and precision ground heat-treated for durability,designed to withstand extreme conditions and boasting a load capacity of 28,081lbs.

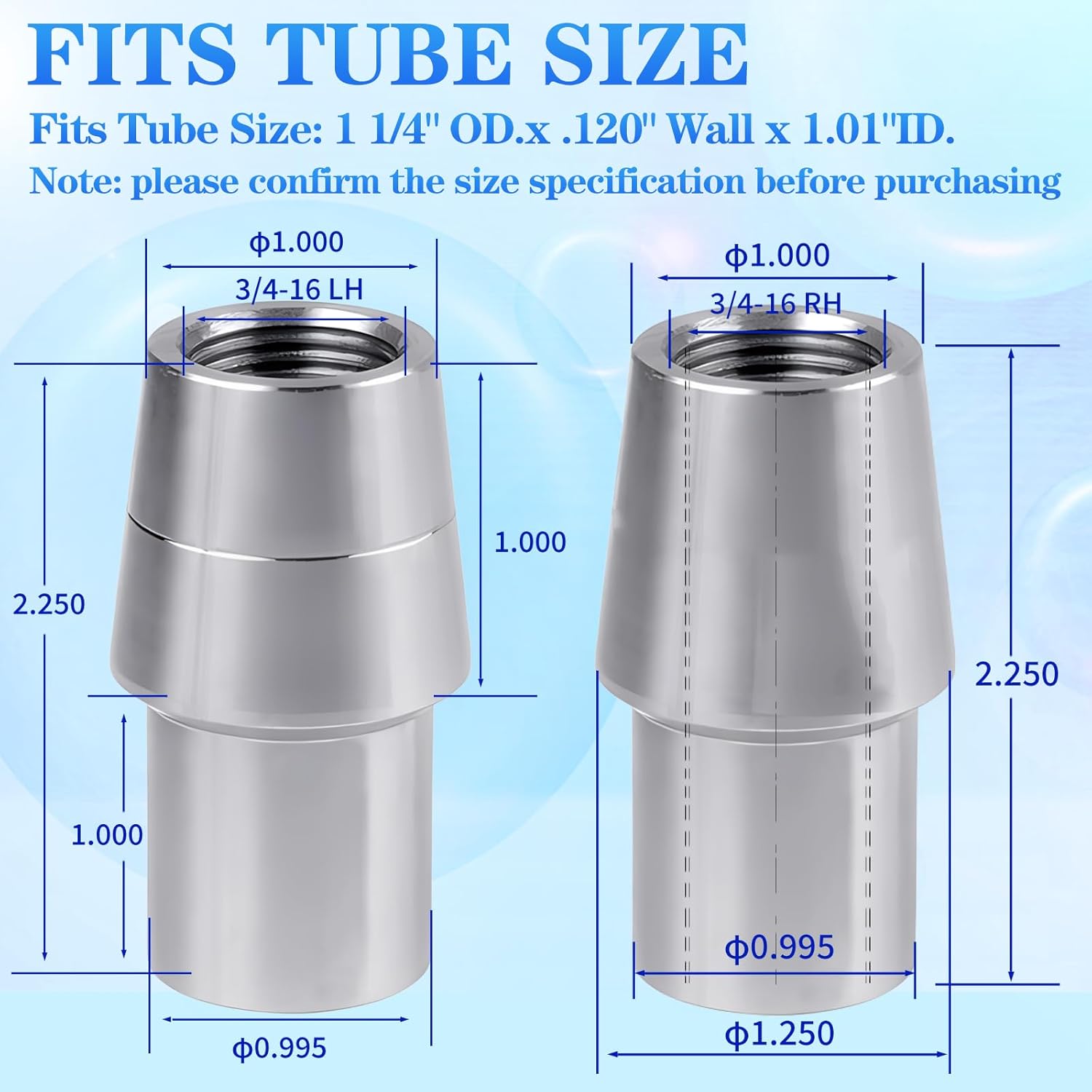

• 【Adaptability】The rod end is with 3/4"shaft. Lock Nut: Thread 3/4"-16. Fits Tube Size: 1" 1/4 OD. x .120 Wall x 1" ID.note: please confirm the size specification before purchasing
• 【Wide Applications】Our heim joints extreme load rating make these excellent for building custom steering and suspension links for trucks, 4x4s, rock crawlers, Jeeps, sand rails and more.provide exceptional performance for steering and linkage joints on hot rods.
• 【Easy to install】Our heim joints for 3/4” rod end can be welded with additional hardware for mating installation.The design allows for quick and hassle-free installation, saving time and effort during setup.
